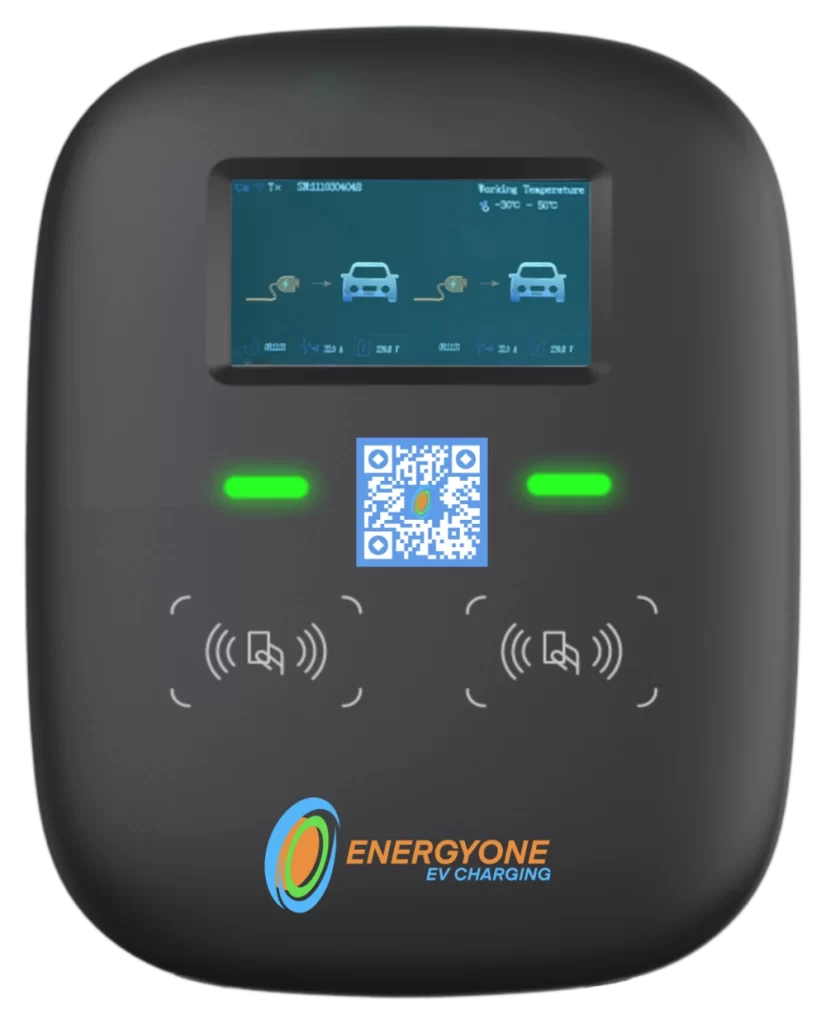

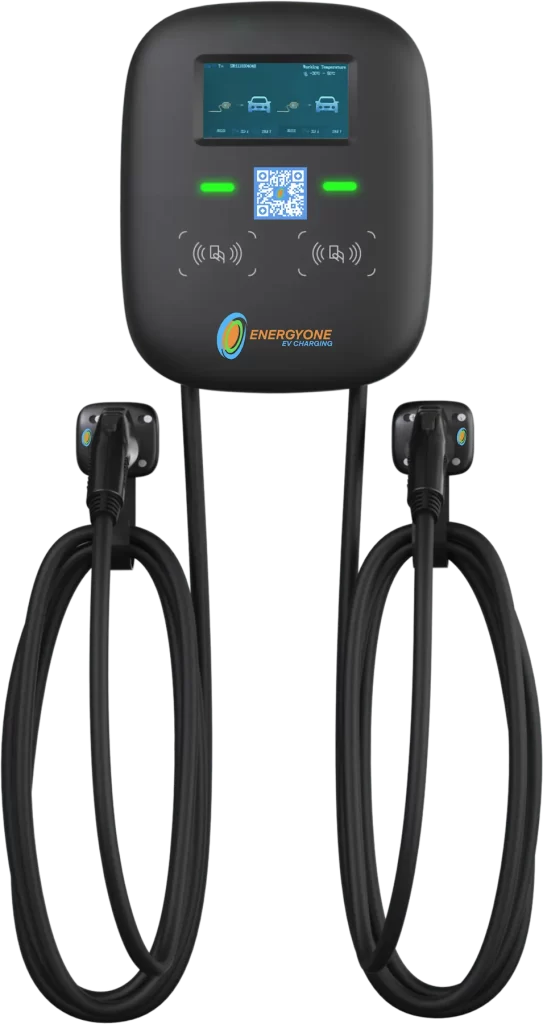

Introducing the Alll New E1-C210 Dual Port Charging Station
"All New" Powerful Dual Port EV Charging for Business. Up to 11.5kWh per port with WiFi (or 4G), RFID, and a 7" Display. Plug in and charge, or connect to the ONE Network and you are ready to monetize your charger.
/
Model Number | Dual Port Charger Model E1-C210 |
|---|---|
Input Voltage | 208-240V AC |
Frequency | 50 – 60 Hz |
Max Power Output | 96A |
Ports | Two (2) |
Max Power Output | 1 x 11.5 kWh / 48A 1 x 11.5 kWh / 48A |
More Information
| Authentication | RFID (ISO 14443) |
| Network | Enet + WiFi or Optional 4G |
| Connectivity | OCCP 1.6J |
| Network | One Network (Opt) |
| Display | 4.3″ LCD |
| Certificates | ETL (UL/2594,2231-1+(1-2), FCC |
| Safety Compliance | UL/2594,2231-1,2231-2 |
| Connectivity | OCCP 1.6J |
| RCD | CCID 20 |
| Protection | UVP,OVP,RCD,SPD,Ground Fault Protection,OCP,OTP,Control Pilot Fault Protection |
| Charging Interface | Type 1 Plug, SAE J1772 |
| Operating Temperature | -122F to 122F |
| Weather Rating | IKO8 & IP54 |
| Relative Humidity | OCCP 1.6J |
| RCD | CUp to 95% Non Condensing |
| Cable | 18′ 8AG or Opt 25′ |
| Warranty | 24 Months Limited Warranty |
* Subject to Availability, and Specifications Subject to Change Without Notice
Downloads:
Related Products
FAQ
Rebates? Incentives? How much Can I get
Check out our rebates and incentives page for the latest information. We recommend you talk to one of our specialists, we know all the programs and will maximize what you are eligible for. Many programs pay up to 100%, while others up to 75%. Federal programs offer credits of 30%. Click to email a rebate coordinator
There are three main types of commercial EV charging stations:
Level 1: These chargers use a standard 120-volt outlet and can take up to 24 hours to fully charge an EV. * Level 2: These chargers use a 240-volt outlet and can fully charge an EV in 4-8 hours. * DC fast chargers: These chargers use direct current to deliver a high-power charge, which can fully charge an EV in 30 minutes or less.
What are the benefits of installing commercial EV charging stations?
* Attracting and retaining customers and employees who drive EVs.
* Increasing property value.
* Complying with government mandates and incentives.
* Reducing greenhouse gas emissions.
* Improving air quality.
*Great incentives are paying for chargers (or have substantial incentives and credits), and those programs won’t be forever.
There are a few best practices for installing commercial EV charging stations, including:
* Placing chargers in high-traffic areas where EV drivers are likely to need them.
* Providing dedicated parking spaces for EV drivers.
* Installing chargers that are compatible with a variety of EVs.
* Offering a variety of payment options for EV drivers.
* Providing customer support for EV drivers.
What are the costs of installing commercial EV charging stations?
The cost of installing a commercial EV charging station will vary depending on the type of charger, the number of chargers, and the location of the chargers. In general, Level 1 chargers are the least expensive to install, followed by Level 2 chargers, and then DC fast chargers.
There are a few things to know that go along with with installing commercial EV charging stations, including:
* The cost of installation and maintenance. Understand what the costs are before installing
* The risk of fire or electrical shock. Make sure you are using a qualified commercial contractor
* The potential for overcrowding at charging stations. You need to work with us to optimize your properties space.
* The need for dedicated parking spaces for EV drivers.
Maintenance? Commercial EV charging stations require regular maintenance to ensure that they are operating properly and safely. This maintenance should include:
* Checking the charger’s electrical connections for any damage.
* Cleaning the charger’s contact points.
* Updating the charger’s software.
* Replacing the charger’s battery, if necessary.
* Check EnergyOne’s maintenance programs and advance replacement programs
What are the safety regulations for commercial EV charging stations?
There are a number of safety regulations that must be followed when installing and operating commercial EV charging stations. These regulations are designed to protect EV drivers, installers, and the public from fire, electrical shock, and other hazards.
